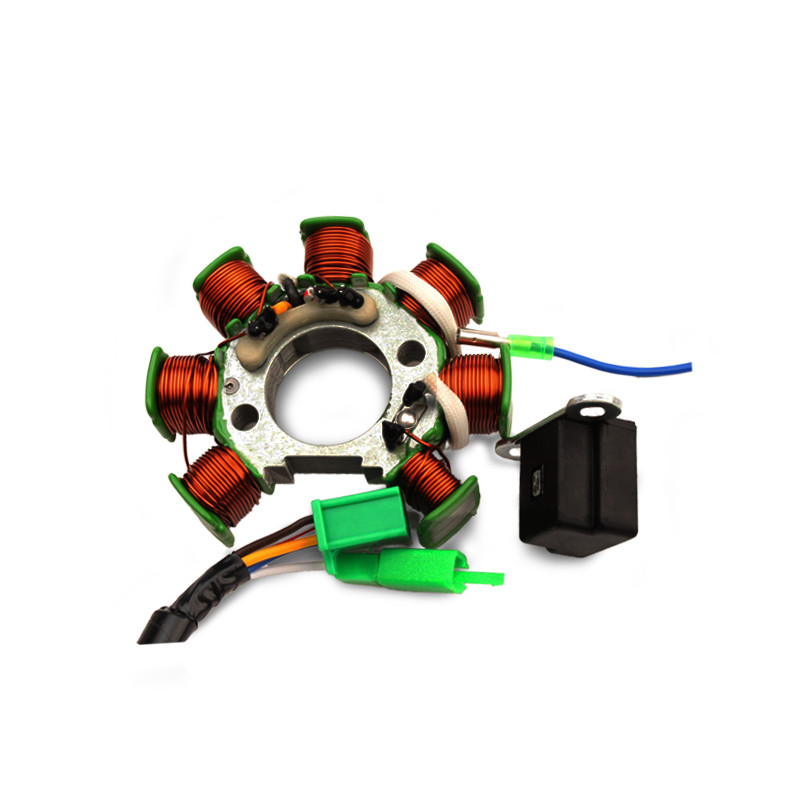

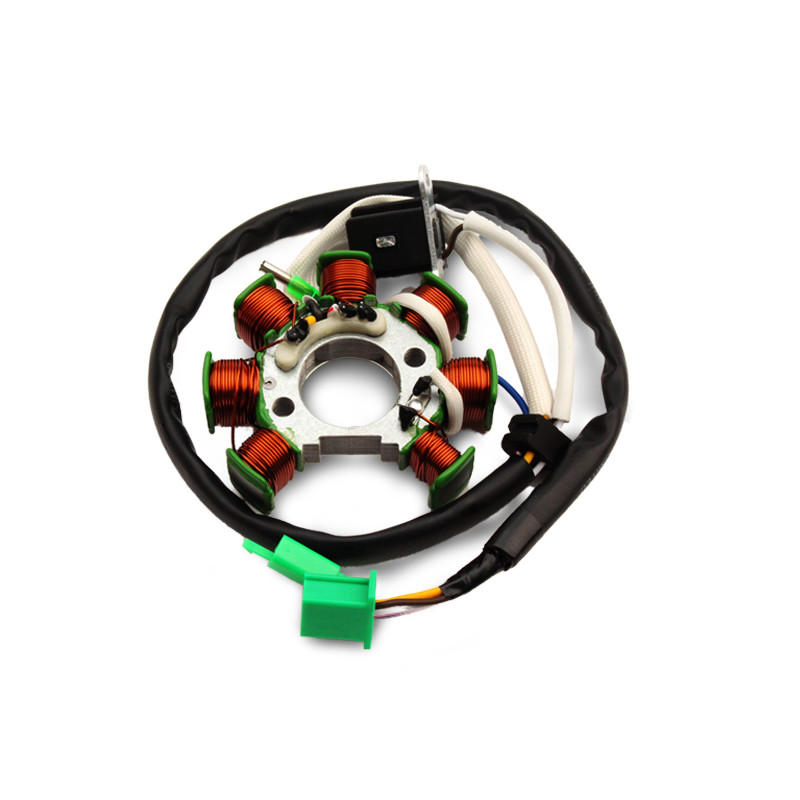

YAYE Wholesale Motorcycle Accessories Stator Coils Fit For Suzuki AX100

GY6-125 Electric Starting And GY6-7 Level Coils.

Magnetic motor stator coils for motorcycles Suzuki AX100 and GY6-125:
As a part of the magneto system, the stator coil is responsible for generating

a magnetic field and induced current, which is then used in ignition systems

or other power systems.
1, Function
Suzuki AX100: The magnetic motor stator coil of this model works in

conjunction with the rotor (including permanent magnets) through

electromagnetic induction principle when the engine is running, generating

high voltage electricity and supplying it to the spark plug for ignition.
GY6-125: Similarly, the magnetic motor stator coil of the GY6-125 model is

also responsible for generating high voltage electricity during engine

operation, ensuring the normal operation of the ignition system and driving

the motorcycle to run.
2, Structure and Characteristics
Structure: The stator coils of both models of magnetic motors are made of

conductive materials (such as copper wire) and are fixedly installed on the

stator part of the magnetic motor.
characteristic:
High temperature resistance: Due to the high temperature generated by

motorcycle engines during operation, stator coils need to have good high

temperature resistance performance.
Wear resistance: Under long-term use, the stator coil needs to be able to

withstand certain mechanical vibrations and wear.
Good stability: In order to ensure the stable operation of the ignition system,

the stator coil needs to have stable electrical performance.
3, Importance
The stator coil of a magnetic motor is an important component of the

motorcycle ignition system, and its performance directly affects the starting,

acceleration, and driving stability of the motorcycle.
If the stator coil malfunctions or is damaged, it may cause the motorcycle to

fail to start, ignite poorly, or stall while driving.
4, Maintenance and upkeep
Regularly check the electrical connections and insulation performance of the

stator coils to ensure they are in good condition.
Pay attention to keeping the magneto system clean and dry, avoiding

moisture and impurities from entering and causing short circuits or damage.
If there are signs of damage or performance degradation in the stator coil,

it should be replaced promptly to ensure the normal operation of the

motorcycle.

The process of replacing the stator coil of a motorcycle magnetic motor

1. Turn off the power and prepare the necessary tools such as screwdrivers,

wrenches, insulating tape, multimeters (for testing circuits), etc.

2. Remove the casing, disconnect, and dismantle the old coil

3. Check for damage and clean the work area

4. Prepare a new coil, install the new coil, and connect the circuit

5. Check connections: After all connections are completed, carefully inspect

all joints for tightness and ensure that there are no short circuits or broken

wires.

Test function: Restart the motorcycle and test if the magneto system is

working properly. Observe the ignition condition, whether the engine runs

smoothly, and whether there are any other abnormal phenomena.

Product Paramenters

Guangzhou Yaye Cross Border E-Commerce Co., Ltd.Guangzhou Yaye Cross Border E-Commerce Co., Ltd was established in 2001located in Baiyun District, Guangzhou, with a strong production, researchand development, sales team.
The company mainly engaged in motorcycle accessories, involving the saleof more than 30 models ofnearly 5,000 accessories, under the jurisdictionofYaye, Shuaiyin, AMG and other independent brands.
Products are exported to Africa, the Middle East, Southeast Asia and othercountries
