Product Introduction

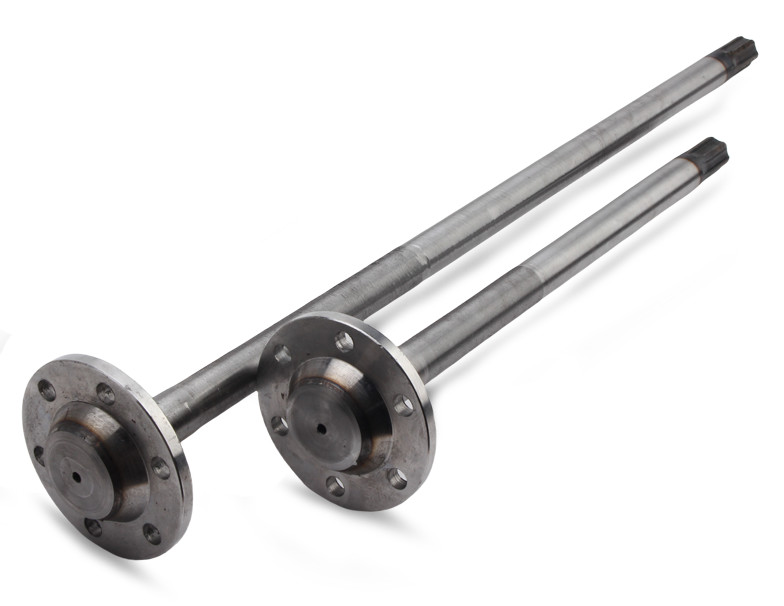

6 bolts tricycle full floating axle half shaft Transmission Parts Rear Axle

6 teeth suspended half shaft and holoaxis.

Functional function
Transmission of power: The main function of the tricycle's 6-speed

spline half shaft with a disc is to transmit power. When the power

generated by the engine or motor is transmitted to the half shaft

through the gearbox and differential, the half shaft transmits the

power to the pulley through splines, thereby driving the wheels to

rotate.
Connecting differential and drive wheels: The half shaft serves as the

connecting component between the differential and drive wheels,

ensuring the continuity and stability of power transmission. Meanwhile,

the spline connection provides reliable connection strength, preventing

relative sliding or detachment between components.
Adapting to road surface changes: Due to the fact that tricycles typically

need to operate under various road conditions, the design of the half

axle and belt pulley needs to have a certain degree of adaptability.

Through the spline connection and the support of the pulley, the half

shaft can better adapt to road changes, improving the stability and

safety of the vehicle's driving.

install
Preparation work: Before installation, it is necessary to ensure that all

tools and materials are fully prepared, including new 6-speed spline

half shaft belt discs, suitable wrenches, screwdrivers, etc. At the same

time, check whether the transmission system of the tricycle is in good

condition to ensure that there are no other faults or damages.
Dismantling old components: Firstly, it is necessary to remove the old

half shaft belt disc. This usually involves disassembling components

such as wheels and brake systems in order to have access to the half

axle. Then, use appropriate tools to disassemble the connecting

components between the half shaft and the differential or wheel hub,

such as screws, nuts, etc.
Install new component: Align the new 6-speed spline half shaft with

the installation position, ensuring that the spline is completely aligned

with the keyway of the differential or wheel hub bearing inner ring.

Then, use appropriate tools to tightly connect the half shaft to the

differential or wheel hub, such as tightening screws, nuts, etc. During

installation, be careful not to damage components such as splines or

bearings.
Adjustment and testing: After installation, necessary adjustments need

to be made to the transmission system, such as adjusting the brake

system and checking the tightness of the transmission shaft. Then,

conduct a test drive to ensure that the tricycle can operate normally

and the transmission system has no abnormal noise or vibration.

maintain
Regular inspection: In order to maintain the good performance and

extend the service life of the tricycle, it is necessary to regularly inspect

the transmission system. This includes checking the wear of the half

shaft pulley, the tightness of the spline connection, and the lubrication

of the bearings.
Cleaning and lubrication: During the inspection process, if dirt or

impurities are found on the surface of the half shaft belt or bearing,

they should be cleaned in a timely manner. At the same time, according

to the manufacturer's recommendations, regularly add an appropriate

amount of lubricant to the bearings to ensure their normal operation and

reduce wear.
Timely replacement: If serious wear, damage, or malfunction of the half

axle belt or related components is found, they should be replaced in a

timely manner to avoid affecting the normal operation and safety of the

tricycle.

matters needing attention
Professional operation: Due to the complex structure and involvement

of multiple key components in the transmission system of tricycles, it is

recommended to have professional personnel perform installation,

maintenance, or replacement operations to ensure correctness and

safety.
Compliance with specifications: When performing any operation, it is

necessary to follow the operating specifications and guidelines provided

by the manufacturer to ensure correct connections and clearances

between components.
Safety first: When performing any operation related to the transmission

system, it is necessary to pay attention to safety precautions such as

wearing protective goggles, gloves, etc. to prevent accidents from

happening.

Product Paramenters
