Product Introduction

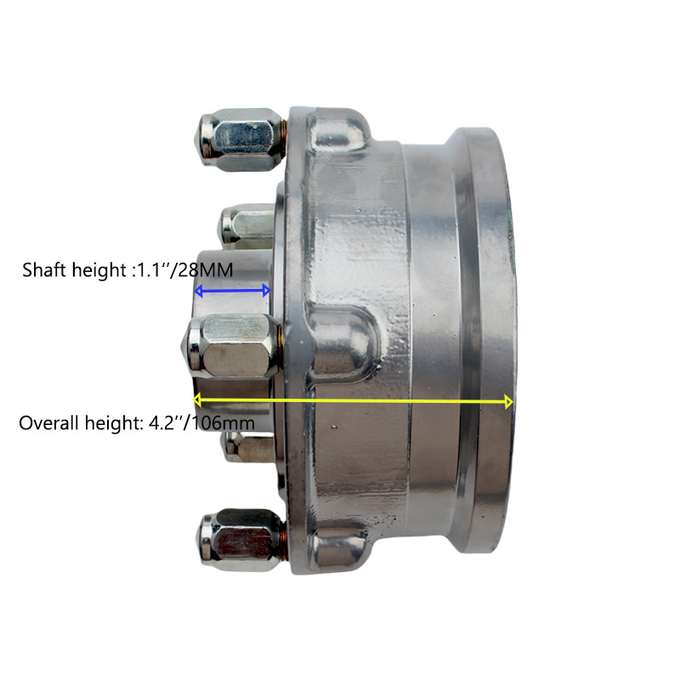

Motorcycle accessories wheel hub three wheel motorcycle front wheel
5 hole
Ring interchanger 6304 brake pan.
Five hole front wheel interchange hub refers to a front wheel hub
with five
bolt holes, which allows the tire and hub to be tightly fixed to
the vehicle
through bolts.
1, Basic structure of wheel hub
A wheel hub usually consists of two parts: the wheel rim and the
spokes
Wheel rim: The part in direct contact with the tire that supports
the tire and
determines its direction.
Spoke: The part that connects the wheel rim and the center hole,
playing
an important load-bearing role, and its strength determines the
overall
strength of the wheel hub.
Five hole front wheel interchange hub refers to the hub having five
bolt
holes for installing and securing tires.
2, Characteristics of five hole front wheel interchangeable hub
Fixed method: Connected to the wheel axle or suspension system of
the
vehicle through five bolt holes, this multi bolt design improves
the connection
strength and stability between the wheel hub and the vehicle.
Applicability: The five hole design is commonly used in various
vehicle models.
Interchangeability: Under certain specifications and parameter
requirements,
the five hole front wheel interchange hub can be interchanged
between
different vehicles or different front wheels of the same vehicle,
improving the
convenience of maintenance and replacement.
3, Explanation of relevant parameters
Hole spacing (PCD): refers to connecting the bolt holes on the
wheel hub
into a circular ring, and the diameter of this ring is the hole
spacing. For
example, "5 × 120" means there are 5 bolt holes, and the diameter
of the
circle connected by these 5 bolt holes is 120mm. This is one of the
important
parameters that must be considered when choosing a wheel hub.
Central hole (CB): A fixed hole at the center of the wheel hub that
connects to
the drive shaft. Its diameter must match the diameter of the
vehicle's drive
shaft to ensure that the wheel hub can be installed correctly and
run stably.
Offset distance (ET): refers to the distance between the wheel hub
mounting
plate and the centerline of the wheel hub width, which affects the
overall
performance and appearance of the vehicle after the wheel hub is
installed.
The larger the offset, the closer the wheel hub is to the body
after installation;
On the contrary, it will shift further outward.
4, Precautions
Choose a wheel hub that matches the vehicle: When replacing or
selecting
a five hole front wheel interchange hub, it is necessary to ensure
that it
matches the vehicle's transmission shaft diameter, hole spacing,
and other
parameters to ensure correct installation and safe driving.
Pay attention to the quality and performance of the wheels: High
quality
wheels can not only improve the overall performance and appearance
of the
vehicle, but also extend its service life and reduce the occurrence
of failures.
Therefore, when choosing wheels, priority should be given to
well-known
brands and high-quality products.
Follow the correct installation and replacement process: When
replacing or
installing the wheel hub, follow the correct operating procedures
and safety
regulations to ensure that the installation is correct, secure, and
will not
cause damage to the vehicle.
Product Paramenters
| Product name | front wheel 5 hole Ring interchanger |
| Model number | 6304-2RS |
| brand | YAYE |
| Quality assurance service | 1 year |
