Product Introduction

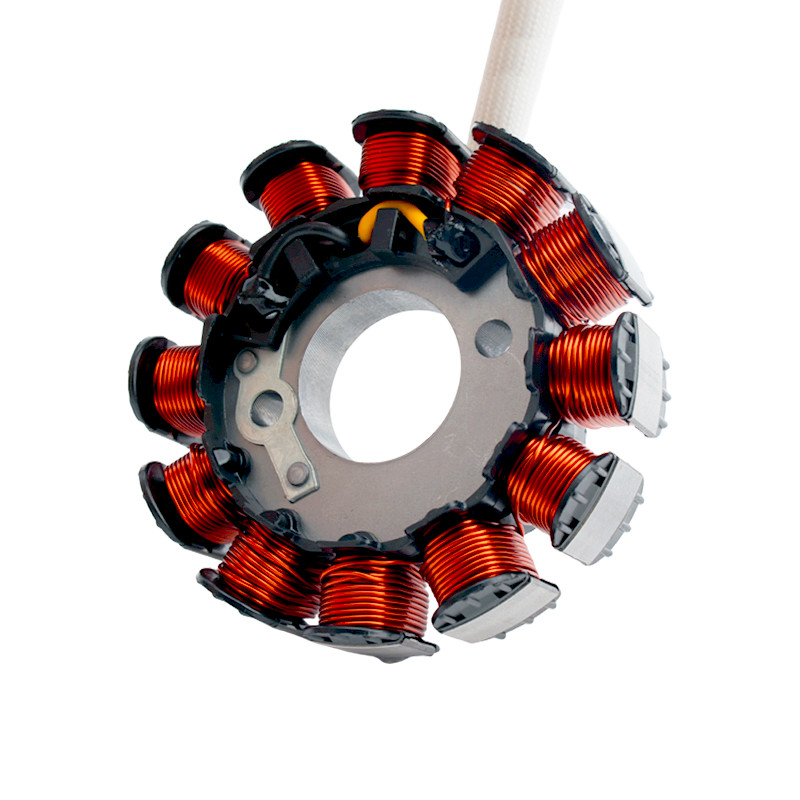

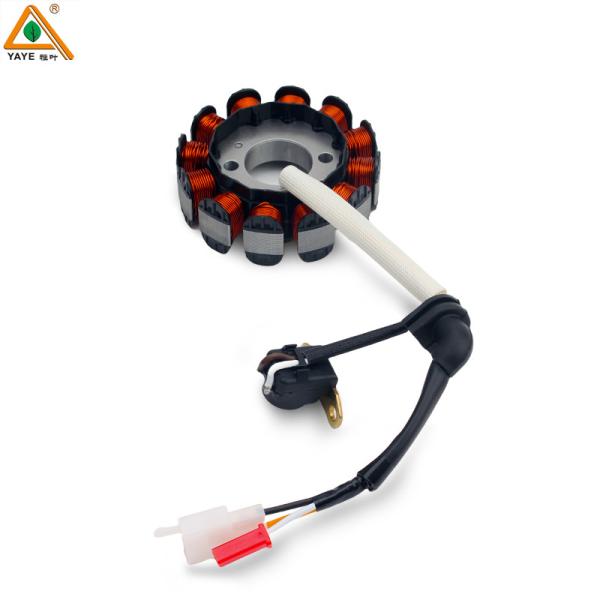

High-quality Motorcycle Parts & Accessories, Magneto Stator Coil
for TVS NEO 110.
The stator coil of a magnetic motor is a fixed part of the magnetic
motor, usually made
of insulated wires wound and installed on the stator core of the
magnetic motor.
Electricity generation: When the rotor of a magnetic motor rotates,
alternating current
is generated in the stator coils through the principle of
electromagnetic induction.
Electricity transmission: The generated alternating current is
transmitted to other
systems of the motorcycle, such as the ignition system, charging
system, etc., to
support the normal operation of the motorcycle.
Coil material: It is usually made by winding high-quality insulated
wires to ensure
stable operation in harsh environments such as high temperature and
high humidity.
Installation method: Fixed on the stator core of the magnetic
motor, with a certain
gap between it and the rotor, so that electromagnetic induction can
be generated
when the rotor rotates.
The role of TVS NEO 110 motorcycle
Ignition system: The electrical energy generated by the stator coil
of the TVS NEO
110 motorcycle magnetic motor is transmitted to the ignition system
to generate
high-voltage electric sparks, ignite the mixture, and drive the
engine to operate.
Charging system: Some of the electrical energy may also be used to
charge
the motorcycle battery, ensuring that the battery remains in good
working
condition at all times.
matters needing attention
Maintenance: Regularly check the insulation performance and
connection
of the stator coils of the magnetic motor to ensure that there are
no faults such
as short circuits or open circuits.
Replacement cycle: According to the usage of the motorcycle and the
manufacturer's
recommendations, regularly replace the aging magnetic motor stator
coils to ensure
the performance and safety of the motorcycle.
The stator coil of the TVS NEO 110 motorcycle magnetic motor is an
important
component in the TVS NEO 110 motorcycle engine. It generates
electrical energy
through the principle of electromagnetic induction and transmits it
to other systems
of the motorcycle to support its normal operation. During use, it
is necessary to pay
attention to the maintenance and replacement cycle of the magnetic
motor stator
coil to ensure the performance and safety of the motorcycle.
Replacement steps
1. Preparation work
Ensure that the motorcycle's power is turned off and unplug the
battery cable to
avoid short circuits during the replacement process.
Prepare the necessary tools and materials, such as screwdrivers,
wrenches,
insulation tape, new magnetic motor stator coils, etc.
2. Disassemble the old coil
Find the position of the stator coil of the magneto, which is
usually located
inside the engine and requires disassembling part of the engine
casing to expose it.
According to the specific structure of the motorcycle and the
manufacturer's
instructions, remove the screws or fixtures that fix the stator
coil.
Carefully remove the old coil from the stator core, being careful
not to damage the
surrounding components.
3 Inspection and Cleaning
After removing the old coil, check whether the stator core is
damaged or worn,
and repair or replace it if necessary.
Clean the stator core and surrounding components to ensure that
there are
no dust, oil stains, or other impurities.
4. Install a new coil
Place the new magnetic motor stator coil on the stator core,
ensuring that the position
and direction of the coil are correct.
Use screws or fixtures to fix the new coil onto the stator core,
paying attention
to the appropriate tightening force to avoid being too tight or too
loose.
5 Connection lines
According to the wiring diagram of the motorcycle, correctly
connect the circuit of the
new coil to the motorcycle's electrical system.
Ensure that all connections are secure and reliable, without any
looseness or poor
contact.
6 Testing and Debugging
After completing the replacement, reconnect the battery cable and
start the
motorcycle for testing.
Check if the stator coil of the magnetic motor is working properly
and observe for
any abnormal sounds, vibrations, or temperature rise.
If necessary, further debugging and optimization should be carried
out to ensure
the performance and stability of the motorcycle.

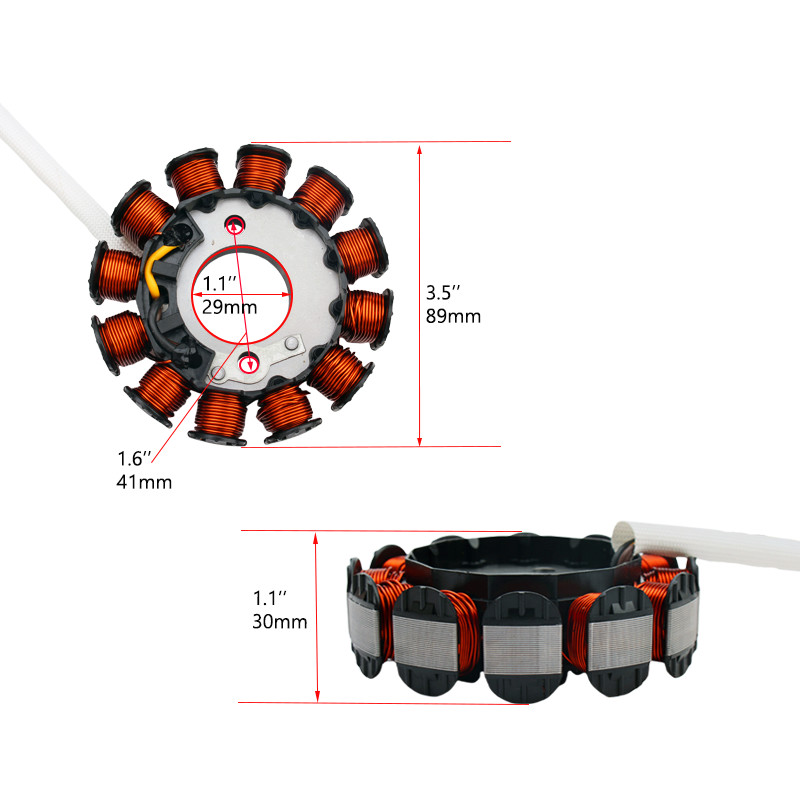

Product Paramenters
| Product name | Maaneto stator coil |
| Fit for | TVS NEO 110 |
| brand | YAYE |
| Quality assurance service | 1 year |
| weight | 478g |
